Brief Introduction to the Basic Technology of Box-Type Substations

Box-type substations, also known as prefabricated or compact substations, are widely used in urban, industrial, and rural power distribution systems. Designed for outdoor use, these modular units combine several functions into one enclosure, offering a compact, efficient, and safe solution for medium- and low-voltage power distribution.

What Is a Box-Type Substation?

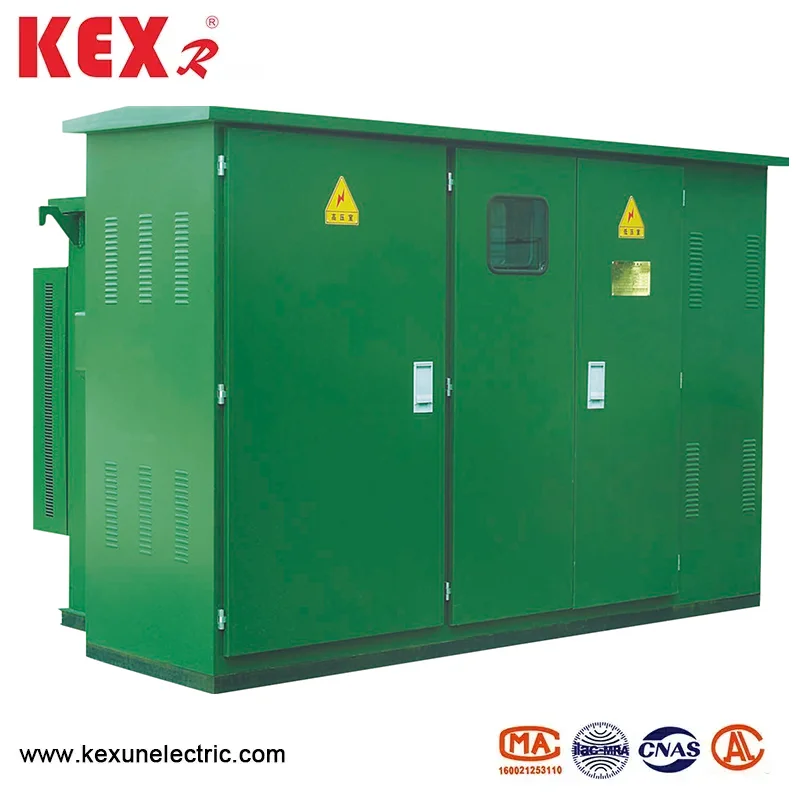

A box-type substation is a factory-assembled unit that typically includes:

A high-voltage switchgear section

A transformer

A low-voltage distribution cabinet

These components are housed in a weather-resistant enclosure, often made of metal or composite materials, providing protection against environmental elements and unauthorized access.

Key Technologies and Features

1. Compact Design

  All major electrical components are integrated into a single, compact unit. This significantly reduces land use and installation time compared to traditional substations.

2. Modular Construction

  Box-type substations are often built using standardized modules, allowing for flexible configurations based on different voltage levels, capacities, and application requirements.

3. Efficient Heat Dissipation

  Advanced ventilation and cooling designs ensure the stable operation of the transformer and switchgear, even in harsh environments.

4. Reliable Insulation and Protection

  The internal components are well insulated and protected to ensure safe operation. High-voltage sections may use SF6 gas or vacuum insulation for enhanced safety and reliability.

5. Ease of Installation and Maintenance

  Being pre-assembled at the factory, box-type substations require minimal on-site work. Routine maintenance is simplified through easy-access panels and standardized parts.

6. Automation and Remote Monitoring

  Many modern units are equipped with digital control systems, allowing for remote monitoring, fault detection, and grid integration through SCADA systems.

Applications

Box-type substations are used across a variety of environments, including:

Residential and commercial areas

Industrial zones and factories

Renewable energy plants (e.g., solar and wind)

Temporary power supply for construction or mining sites

Conclusion

Box-type substations represent a modern solution to power distribution challenges. Their compact, modular design, combined with reliable performance and easy deployment, makes them an ideal choice for both permanent and temporary power distribution needs. As power demands grow and grid infrastructure evolves, box-type substations will continue to play a key role in smart, efficient power systems.
