ASA Coated Multi Layers PVC Roof Tile
ASA coated multi layers pvc roof tile:TypeT1130MaterialPVC,UPVC and ASAThickness2.0mm2.5mm3.0mmWeight/Sqm4.0kg5.0kg6.0kgQuantity/40'HQ7200m25700m24800m2Overall width1130mm,1360mm,900mmwave space210mmWave height27mmLengthCustomized, Max 5.8m in 20FT container ,Max 11.8m in 40FT containerPurlin di......
Send Inquiry
Product Description
| Type | T1130 | ||||
| Material | PVC,UPVC and ASA | ||||
| Thickness | 2.0mm | 2.5mm | 3.0mm | ||
| Weight/Sqm | 4.0kg | 5.0kg | 6.0kg | ||
| Quantity/40'HQ | 7200m2 | 5700m2 | 4800m2 | ||

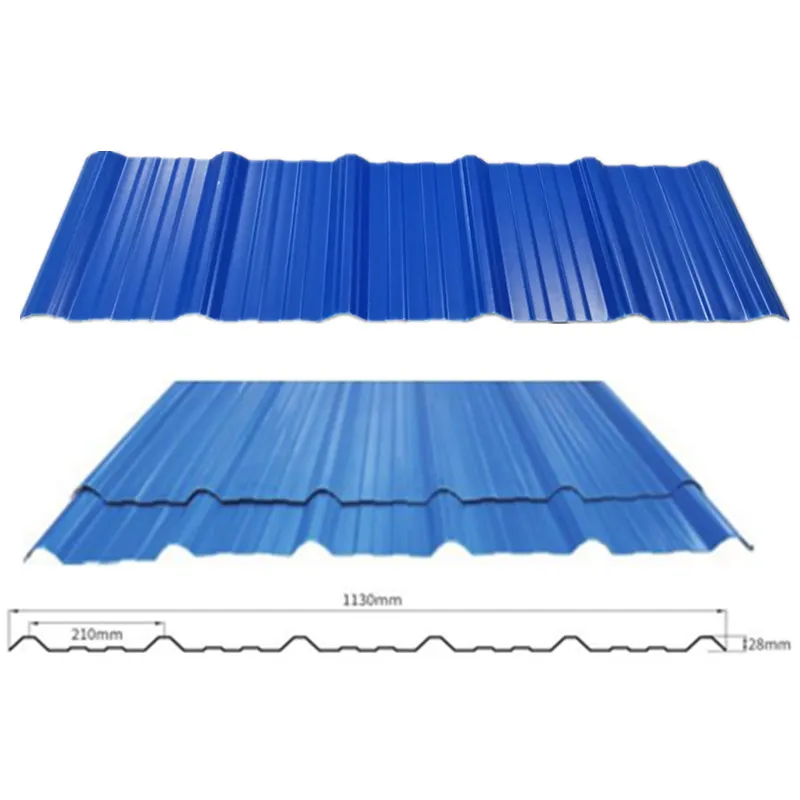

| Overall width | 1130mm,1360mm,900mm | ||||
| wave space | 210mm | ||||
| Wave height | 27mm | ||||
| Length | Customized, Max 5.8m in 20FT container ,Max 11.8m in 40FT container | ||||
| Purlin distance | ≤1200mm | ||||
ASA coated multi layers pvc roof tile color:
| brick red | dark blue | grey | black |
| green | yellow | white | blue |
1.save cost
2. Loading bearing: It can load 150 kg per square meter evenly;
3. Light weight: 5-6.0kg/square meter;
4. Water resistance: 100%;
5. Fire resistance: Self-extinguish off fire;
6. Anti corrosion;
7. Impact resistance and low temperature resistance;
8. Sound and heat insulation;
9. Small Thermal expansivity;
10. Environmental protection and energy conservation;
11. Easy to install
Technical Data:
No. | Content | Unit | Standard | Result |
|
1 |
Appearance quality |
----- | Homogeneous color, no bubble, no crack and no visible material in surface. Clean and no rag in telos. | Eligible | Eligible |
Regular wave shape for two sides’ lapping | Eligible | ||||
2 | Length | mm | +10 | +2 | Eligible |
3 | Width | mm | +5 | +1 | Eligible |
4 | Thickness | mm | ±0.2 | 0.06 | Eligible |
5 | Wave height | mm | ±1.2 | +0.04 | Eligible |
6 | Wave space | mm | ±2.0 | 0 | Eligible |
7 | Density | Kg/m3 | 1000~1450 | 1442 | Eligible |
8 | Tensile strength |
| ≥20 | 26 | Eligible |
9 | Elongation at break |
| ≥20 | 38 | Eligible |
10 | Falling ball impact (1kg,1.5m) |
| Should be no hole and crack | / | Eligible |
11 | Acid resistance(Volume fraction:20% NaOH,24H) |
| Should be no distinctive color change and no deformation | / | Eligible |
12 | Alkali resistance (mass fraction 20% NaOH,24H) |
| Should be no distinctive color change and no deformation | / | Eligible |
13 | Bending |
| ≤50 | 12 | Eligible |
14 | Oxygen Index | % | ≥32 | 35 |
|

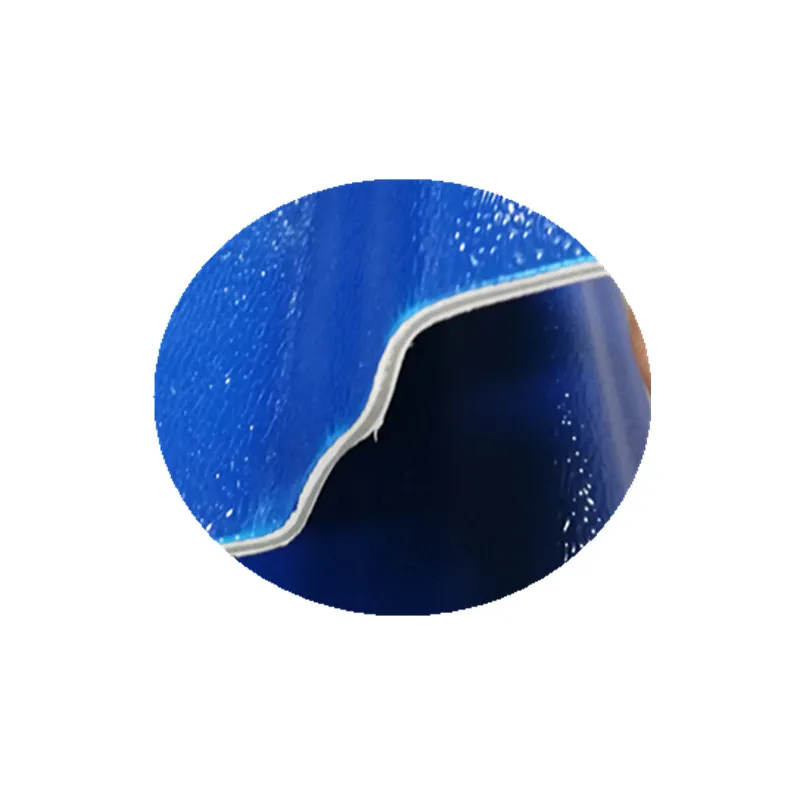

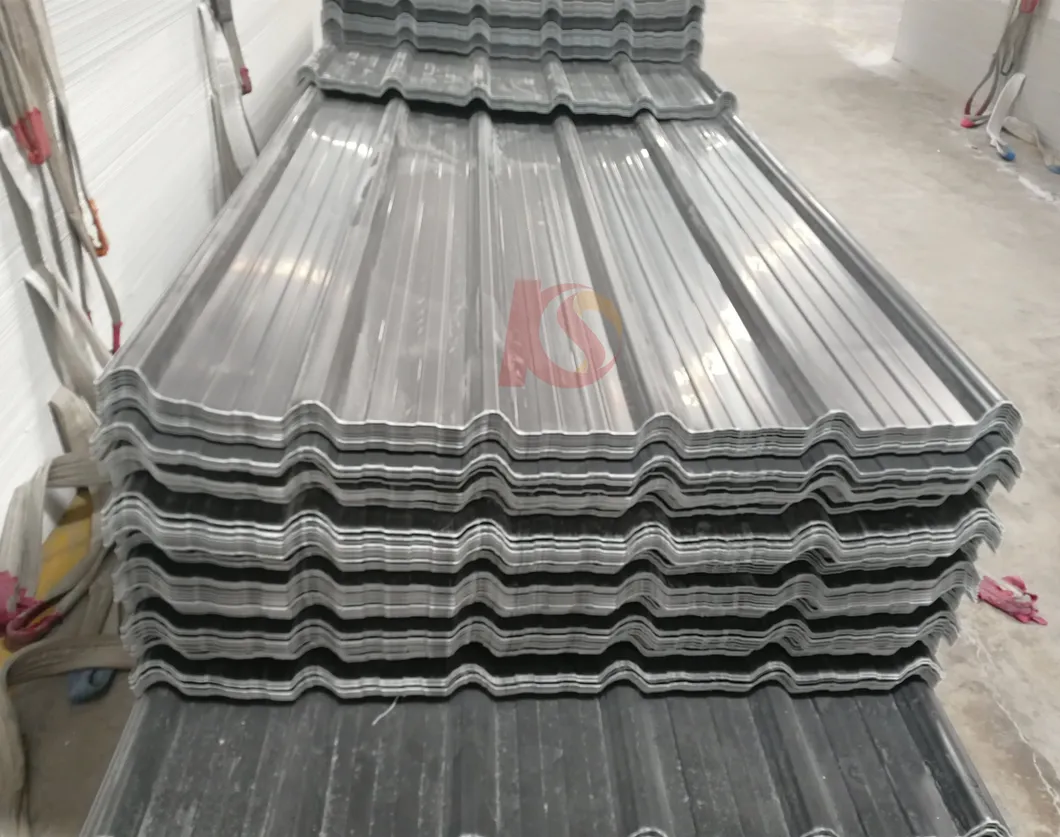

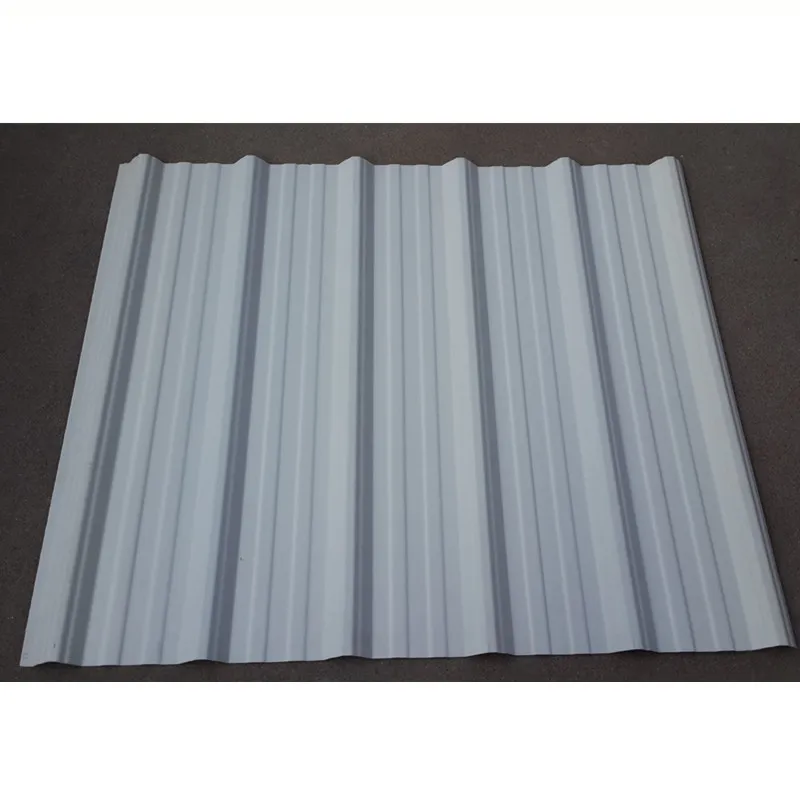

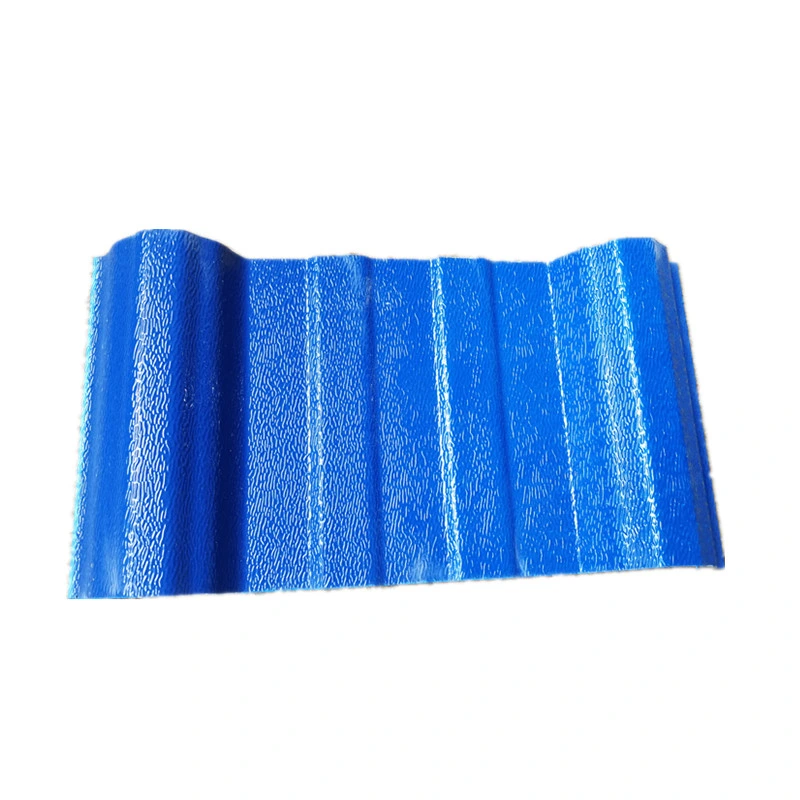

ASA coated multi layers pvc roof tile pictures:

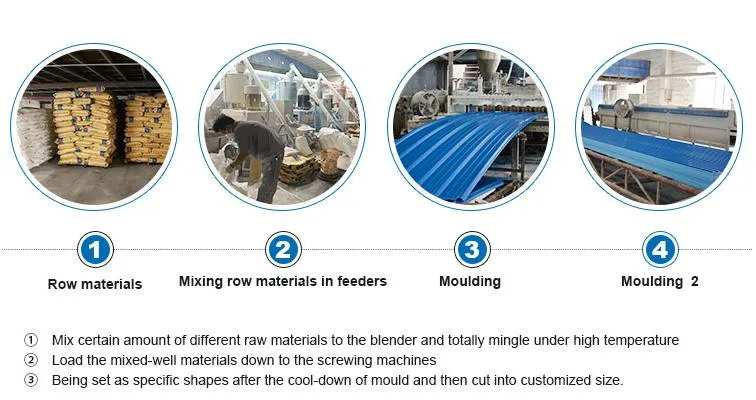

ASA coated multi layers pvc roof tile producing:

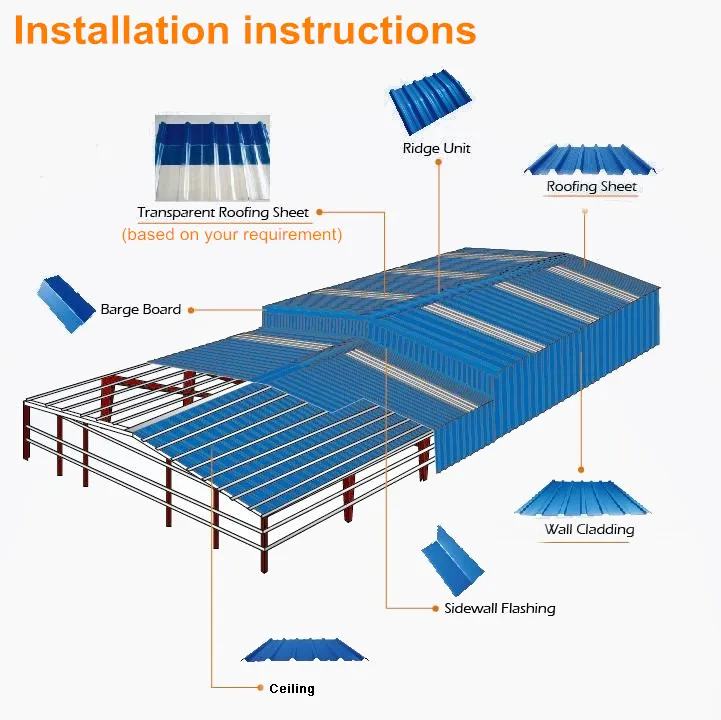

ASA coated multi layers pvc roof tile installation:
